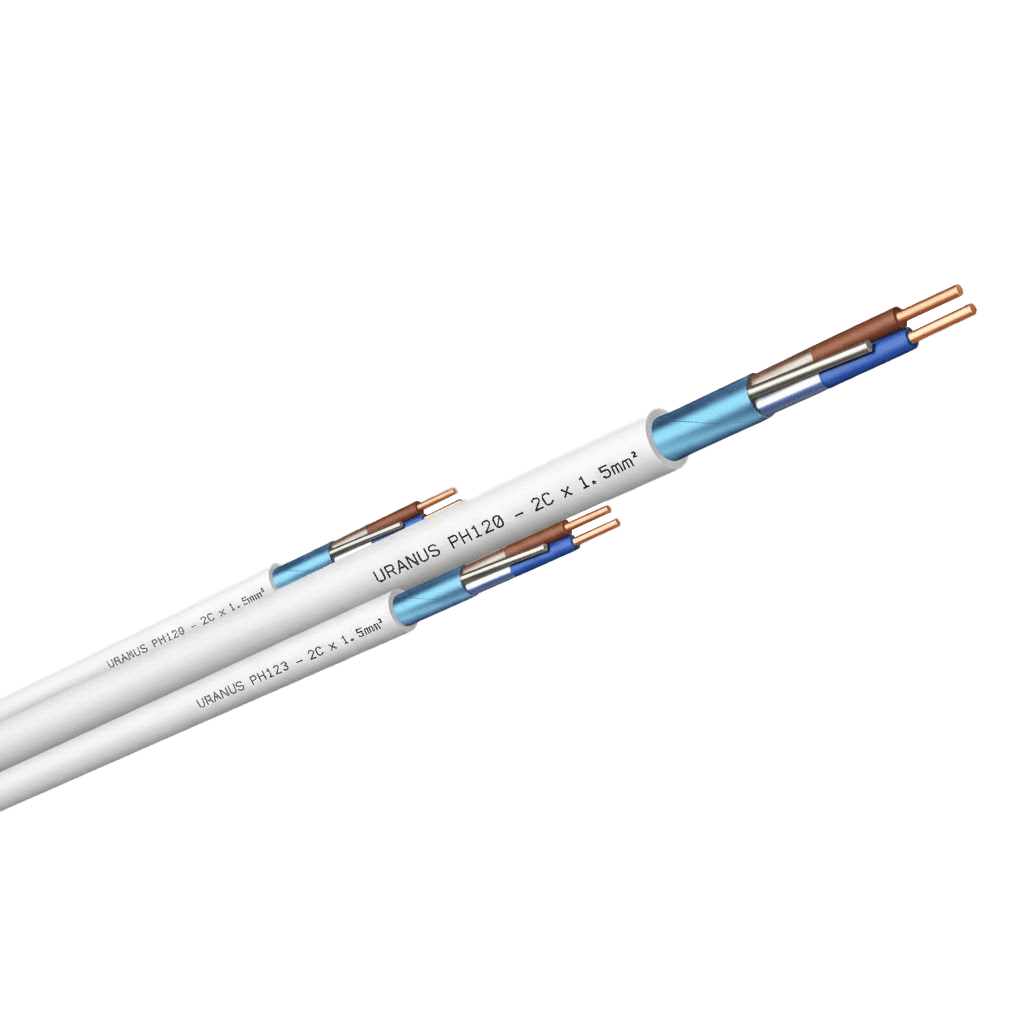

2 Core X 1.5 mm Stranded
URANUS BMUR120 2Cx1.5SQM WHT100/R STRAND
2 Core X 1.5 mm Stranded
URANUS BMUR120 2Cx1.5SQM WHT100/R STRAND
| Brand | Uranus |
| No. Of Cores | 2 |
| Cross Sectional Area | 1.5 mm |
| Type | Stranded |
| Operating Voltage | 300/500 |
| Sheath Material | HFFR |
| Drain Wire | Tinned Copper |
| Roll | 100 Mtrs / 500Mtrs |
| Color | White |
| Approval | LPCB |
Product Characteristics
- Fire Resistance Rating: Designed to maintain circuit integrity for up to 120 minutes (PH 120) under fire conditions as per IEC 60331 / BS 6387 standards.
- Conductor: High-conductivity, stranded, annealed copper conductor complying with IEC 60228 Class 2 or Class 5.
- Insulation: Special mica/glass tape fire barrier combined with XLPE, LSZH (Low Smoke Zero Halogen) insulation for superior flame and heat resistance.
- Sheath: LSZH outer sheath emits minimal smoke and zero halogen gases during fire, ensuring visibility and low toxicity in evacuation scenarios.
- Operating Voltage: Typically rated for 300/500V or 600/1000V (depending on design).
- Operating Temperature Range: Continuous operation between -15°C to +90°C.
- Compliance: Meets or exceeds standards like IEC 60331, IEC 60332, BS 7629, BS 6387 (CWZ), and EN 50200.
Recommendations and Restrictions
Recommendations
- Ideal for emergency power circuits, fire detection and alarm systems, emergency lighting, control circuits, and public address/voice evacuation systems.
- Recommended for use in high-rise buildings, hospitals, airports, tunnels, data centers, and industrial facilities.
- Install using fire-resistant glands, cleats, and junction boxes to maintain full system integrity.
- Ensure proper termination with fire-rated accessories for continued performance under fire conditions.
Restrictions
- Not suitable for direct burial without additional mechanical protection unless specified.
- Avoid excessive bending or pulling during installation to prevent damage to fire barrier layers.
- Not intended for underwater or submerged applications unless specifically designed for such conditions.
- Must be installed by qualified electrical personnel following applicable fire safety codes and manufacturer guidelines.
Product Benefits
- Ensures Critical Circuit Continuity: Maintains electrical integrity of emergency systems such as fire alarms, emergency lighting, smoke extraction fans, and sprinkler systems for up to 2 hours in fire.
- Enhanced Safety: Low smoke and halogen-free materials reduce risk to life and equipment in fire situations.
- Reliable Under Extreme Conditions: Withstands high temperatures, mechanical impact, and water spray during fire emergencies.
- Regulatory Compliance: Fully compliant with international fire safety standards, making it suitable for government, commercial, and industrial installations.
- Environmental and Health Safety: Emits minimal corrosive gases, ensuring safer evacuation and less equipment damage.
- Long Service Life: Excellent resistance to heat, oil, chemicals,
